SS316L Digital Pressure Sensor For Water Liquid 4 - 20mA

Name: SS316L Digital Pressure Sensor For Water Liquid 4 20mA
Brand: NUOYINGJIAYE
Price: 450 USD

Quality SS316L Digital Pressure Sensor For Water Liquid 4 - 20mA for sale

Brand Name : NUOYINGJIAYE

Model Number : NP-93420-IB

Certification : CE/ExiaⅡCT6 Ga,ExdⅡCT6 Gb

Place of Origin : Xi'an, Shaanxi，China

MOQ : 1 pcs

Price : $450 to $1700 /pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 pcs/ pre month

Delivery Time : 7 working days

Packaging Details : Carton, 60cm×30cm×30cm

Application : Liquid/Gas/Steam

Product No. : NP-93420-IB/-IF/-IX/-IC/-IT/-IQ/-II/-III

Gauge pressure : 0~5KPa~3.5MPa/0~0.1KPa~2MPa

Sealing pressure : 0~7KPa~100MPa

Absolute Pressure : 0~20KPa~35MPa

Diaphragm material : 316L(Optional)

Accuracy : 0.1/ 0.2 grade

Power supply : 24VDC

Output : 4... 20mA/HART/RS485/Modbus...

Display : LCD(Optional)

Contact Now

china suppliers low cost digital pressure sensor for water

Product Description

Description of china suppliers low cost digital pressure sensor for water

china suppliers low cost digital pressure sensor for water uses piezoresistive silicon oil-filled sensor as the signal measuring element. LED pressure transmitter signal processing circuit located in the stainless steel housing, can convert sensor signal into standard output signal. china suppliers low cost digital pressure sensor for water and led pressure transmitter through components and semi-finished products test, finished products burn-in screening, are with stable and reliable performance.

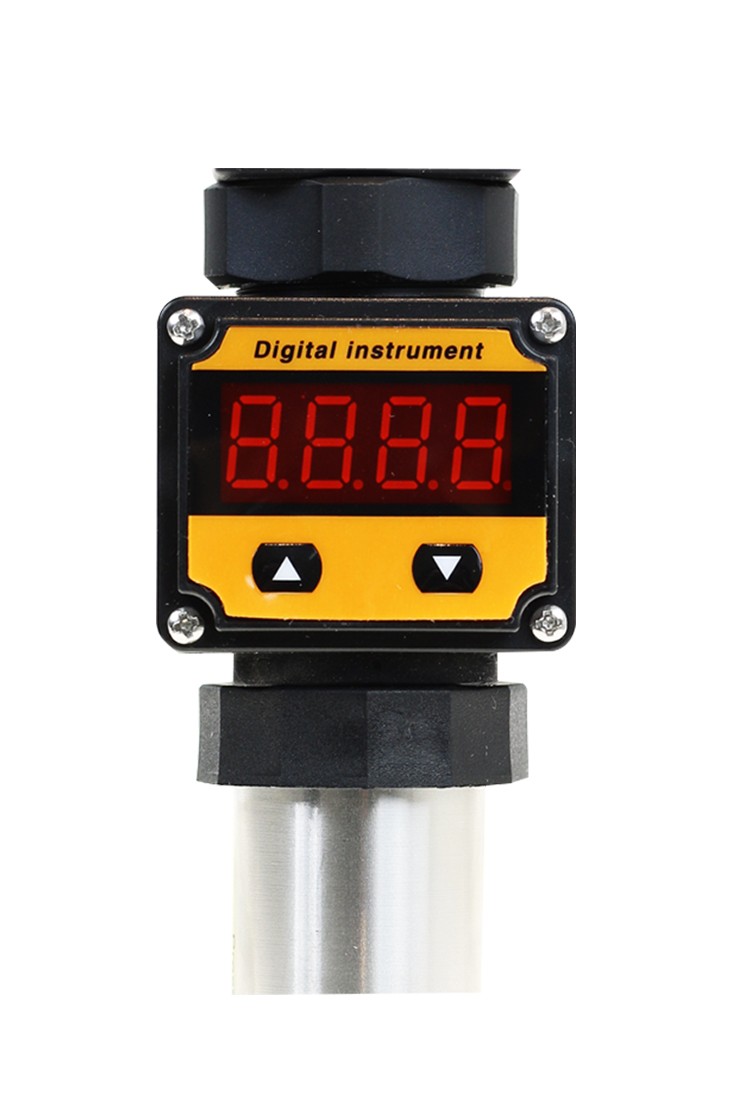

Detailed Images

SS316L Digital Pressure Sensor For Water Liquid 4 - 20mA

Specification

Item	china suppliers low cost digital pressure sensor for water
Measurement Range	-0.1．．．0~0.01．．．~100MPa
Proof pressure	≤1.5X rated pressure or 110MPa which ever is less
Pressure type	Gauge, absolute ,sealed gauge
Accuracy	±0.25%(Typical) ±0.5%(Max.)
Stability	±0.1%F.S/Year( Typical ) ±0.2%F.S/year( Max.)
Temperature Error- Zero	±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(＞100KPa)
Temperature Error -Span	±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(＞100KPa)
OperatingTemperatureRange	-20℃~80℃
Power supply	12～30VDC
Output signal	4～20mA 0～10/20mA 0/1～5VDC
Pressure port	M20×1.5 G1/2 or customize
Housing material	1Cr18Ni9Ti stainless steel
Diaphragm material	316L
O-ring	Fluororubber
Protection	IP65
Insulation resistance	100MΩ 100VDC

Features

Features of china suppliers low cost digital pressure sensor for water

Wide measurement range, full stainless steel,Flush diaphragm.
 Various output signal
 Scene adjustable
 Protection: IP65
 Marking:ExiaIICT6
 CE certification

Application

Application of china suppliers low cost digital pressure sensor for water


Compatible with 316LSS, noncorrosive gases & liquids
 Petroleum industry, chemical industry, metallurgy industry, electric power, hydrology etc.

Product Tags:

24VDC Water Digital Pressure Sensor

Stainless Steel Digital Pressure Sensor Transmitter

SS316L Liquid Pressure Transmitter
